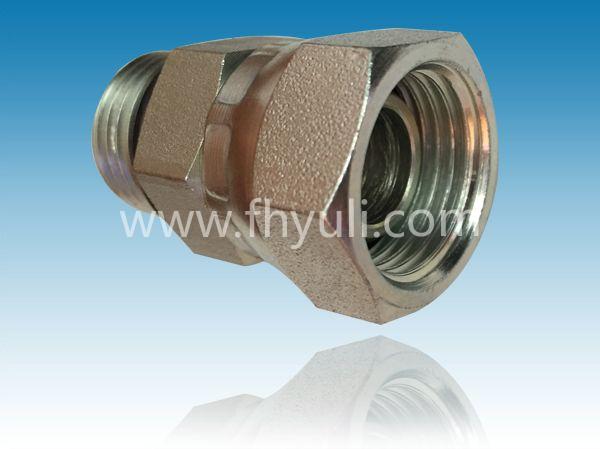

【產品名稱】 美制NPSM螺紋接頭 6900系列
【所屬分類】 美制NPSM螺紋接頭 【產品型號】 6900 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 6900 |
| 材質： | 碳鋼 |
| 規格： | 直管接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | NPSM螺紋 |
| 鏈接方式 | 螺紋 |
Product ID | Descri ption | TUBE O.D. | B1 SAE ORB | A2 NPSM | B1 DRILL | A2 DRILL | L1 LGTH | L LGTH | C HEX | C4 HEX |
| 6900-04-02-O | 04MORB-02FPS Straight | 1/4 | 7/16-20 | 1/8-27 | 0.172 | 0.150 | 1.00 | 1.14 | 0.562 | 0.562 |
| 6900-04-02-O-SS | 04MORB-02FPS Straight Stnls | 1/4 | 7/16-20 | 1/8-27 | 0.172 | 0.150 | 1.00 | 1.14 | 0.562 | 0.562 |
| 6900-04-04-O | 04MORB-04FPS Straight | 1/4 | 7/16-20 | 1/4-18 | 0.172 | 0.220 | 1.11 | 1.30 | 0.688 | 0.562 |
| 6900-04-04-O-SS | 04MORB-04FPS Straight Stnls | 1/4 | 7/16-20 | 1/4-18 | 0.172 | 0.220 | 1.11 | 1.30 | 0.688 | 0.562 |
| 6900-04-06-O | 04MORB-06FPS Straight | 1/4 | 7/16-20 | 3/8-18 | 0.172 | 0.340 | 1.15 | 1.36 | 0.875 | 0.688 |
| 6900-04-06-O-SS | 04MORB-06FPS Straight Stnls | 1/4 | 7/16-20 | 3/8-18 | 0.172 | 0.340 | 1.15 | 1.36 | 0.875 | 0.688 |
| 6900-04-08-O | 04MORB-08FPS Straight | 1/4 | 7/16-20 | 1/2-14 | 0.172 | 0.460 | 1.21 | 1.49 | 1.000 | 0.812 |
| 6900-05-04-O | 05MORB-04FPS Straight | 5/16 | 1/2-20 | 1/4-18 | 0.234 | 0.220 | 1.09 | 1.28 | 0.688 | 0.625 |
| 6900-05-08-O | 05MORB-08FPS Straight | 5/16 | 1/2-20 | 1/2-14 | 0.234 | 0.460 | 1.30 | 1.58 | 1.000 | 0.812 |
| 6900-06-04-O | 06MORB-04FPS Straight | 3/8 | 9/16-18 | 1/4-18 | 0.297 | 0.220 | 1.07 | 1.26 | 0.688 | 0.688 |
| 6900-06-06-O | 06MORB-06FPS Straight | 3/8 | 9/16-18 | 3/8-18 | 0.297 | 0.320/0.360 | 1.17 | 1.46 | 0.875 | 0.688 |
| 6900-06-06-O-SS | 06MORB-06FPS Straight Stnls | 3/8 | 9/16-18 | 3/8-18 | 0.297 | 0.320/0.360 | 1.17 | 1.46 | 0.875 | 0.688 |
| 6900-06-08-O | 06MORB-08FPS Straight | 3/8 | 9/16-18 | 1/2-14 | 0.297 | 0.460 | 1.29 | 1.57 | 1.000 | 0.812 |
| 6900-08-04-O | 08MORB-04FPS Straight | 1/2 | 3/4-16 | 1/4-18 | 0.391 | 0.220 | 1.17 | 1.36 | 0.688 | 0.875 |
| 6900-08-06-O | 08MORB-06FPS Straight | 1/2 | 3/4-16 | 3/8-18 | 0.391 | 0.320/0.360 | 1.23 | 1.40 | 0.875 | 0.875 |
| 6900-08-06-O-SS | 08MORB-06FPS Straight Stnls | 1/2 | 3/4-16 | 3/8-18 | 0.391 | 0.320/0.360 | 1.23 | 1.40 | 0.875 | 0.875 |
| 6900-08-08-O | 08MORB-08FPS Straight | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 0.460 | 1.27 | 1.55 | 1.000 | 0.875 |
| 6900-08-08-O-SS | 08MORB-08FPS Straight Stnls | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 0.460 | 1.27 | 1.55 | 1.000 | 0.875 |
| 6900-08-12-O | 08MORB-12FPS Straight | 1/2 | 3/4-16 | 3/4-14 | 0.391 | 0.635 | 1.41 | 1.76 | 1.250 | 1.000 |
| 6900-10-06-O | 10MORB-06FPS Straight | 5/8 | 7/8-14 | 3/8-18 | 0.484 | 0.340 | 1.26 | 1.47 | 0.875 | 1.000 |
| 6900-10-06-O-SS | 10MORB-06FPS Straight Stnls | 5/8 | 7/8-14 | 3/8-18 | 0.484 | 0.340 | 1.26 | 1.47 | 0.875 | 1.000 |
| 6900-10-08-O | 10MORB-08FPS Straight | 5/8 | 7/8-14 | 1/2-14 | 0.484 | 0.440/0.480 | 1.40 | 1.61 | 1.000 | 1.000 |
| 6900-10-08-O-SS | 10MORB-08FPS Straight Stnls | 5/8 | 7/8-14 | 1/2-14 | 0.484 | 0.440/0.480 | 1.40 | 1.61 | 1.000 | 1.000 |
| 6900-10-12-O | 10MORB-12FPS Straight | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 0.635 | 1.37 | 1.72 | 1.250 | 1.000 |
| 6900-10-12-O-SS | 10MORB-12FPS Straight Stnls | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 0.635 | 1.37 | 1.72 | 1.250 | 1.000 |
| 6900-12-06-O | 12MORB-06FPS Straight | 3/4 | 1-1/16-12 | 3/8-18 | 0.609 | 0.340 | 1.41 | 1.62 | 0.875 | 1.250 |
| 6900-12-08-O | 12MORB-08FPS Straight | 3/4 | 1-1/16-12 | 1/2-14 | 0.609 | 0.460 | 1.45 | 1.73 | 1.000 | 1.250 |
| 6900-12-08-O-SS | 12MORB-08FPS Straight Stnls | 3/4 | 1-1/16-12 | 1/2-14 | 0.609 | 0.460 | 1.45 | 1.73 | 1.000 | 1.250 |
| 6900-12-12-O | 12MORB-12FPS Straight | 3/4 | 1-1/16-12 | 3/4-14 | 0.609 | 0.635 | 1.60 | 1.95 | 1.250 | 1.250 |
| 6900-12-12-O-SS | 12MORB-12FPS Straight Stnls | 3/4 | 1-1/16-12 | 3/4-14 | 0.609 | 0.635 | 1.60 | 1.95 | 1.250 | 1.250 |
| 6900-12-16-O | 12MORB-16FPS Straight | 3/4 | 1-1/16-12 | 1-11-1/2 | 0.609 | 0.831 | 1.70 | 2.05 | 1.500 | 1.250 |
| 6900-14-12-O | 14MORB-12FPS Straight | 7/8 | 1-3/16-12 | 3/4-14 | 0.719 | 0.635 | 1.61 | 1.96 | 1.250 | 1.375 |
| 6900-14-16-O | 14MORB-16FPS Straight | 7/8 | 1-3/16-12 | 1-11-1/2 | 0.719 | 0.831 | 1.60 | 1.95 | 1.500 | 1.500 |
| 6900-16-08-O | 16MORB-08FPS Straight | 1 | 1-5/16-12 | 1/2-14 | 0.844 | 0.460 | 1.62 | 1.90 | 1.000 | 1.500 |
| 6900-16-12-O | 16MORB-12FPS Straight | 1 | 1-5/16-12 | 3/4-14 | 0.844 | 0.635 | 1.73 | 2.08 | 1.250 | 1.500 |
| 6900-16-16-O | 16MORB-16FPS Straight | 1 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.831 | 1.71 | 2.06 | 1.500 | 1.500 |
| 6900-16-16-O-SS | 16MORB-16FPS Straight Stnls | 1 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.831 | 1.71 | 2.06 | 1.500 | 1.500 |
| 6900-16-20-O | 16MORB-20FPS Straight | 1 | 1-5/16-12 | 1-1/4-11-1/2 | 0.844 | 1.087 | 1.90 | 2.32 | 1.875 | 1.875 |
| 6900-20-12-O | 20MORB-12FPS Straight | 1-1/4 | 1-5/8-12 | 3/4-14 | 1.078 | 0.61/0.66 | 1.66 | 2.01 | 1.250 | 1.875 |
| 6900-20-16-O | 20MORB-16FPS Straight | 1-1/4 | 1-5/8-12 | 1-11-1/2 | 1.078 | 0.831 | 1.79 | 2.14 | 1.500 | 1.875 |
| 6900-20-16-O-SS | 20MORB-16FPS Straight Stnls | 1-1/4 | 1-5/8-12 | 1-11-1/2 | 1.078 | 0.831 | 1.79 | 2.14 | 1.500 | 1.875 |
| 6900-20-20-O | 20MORB-20FPS Straight | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1.078 | 1.087 | 1.79 | 2.21 | 1.875 | 1.875 |
| 6900-20-20-O-SS | 20MORB-20FPS Straight Stnls | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1.078 | 1.087 | 1.79 | 2.21 | 1.875 | 1.875 |
| 6900-24-20-O | 24MORB-20FPS Straight | 1-1/2 | 1-7/8-12 | 1-1/4-11-1/2 | 1.312 | 1.087 | 1.75 | 2.17 | 1.875 | 2.125 |
| 6900-24-24-O | 24MORB-24FPS Straight | 1-1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1.312 | 1.317 | 1.95 | 2.37 | 2.125 | 2.125 |
| 6900-24-24-O-SS | 24MORB-24FPS Straight Stnls | 1-1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1.312 | 1.317 | 1.95 | 2.37 | 2.125 | 2.125 |
| 6900-32-32-O | 32MORB-32FPS Straight | 2 | 2-1/2-12 | 2-11-1/2 | 1.781 | 1.802 | 2.00 | 2.42 | 2.625 | 2.750 |
