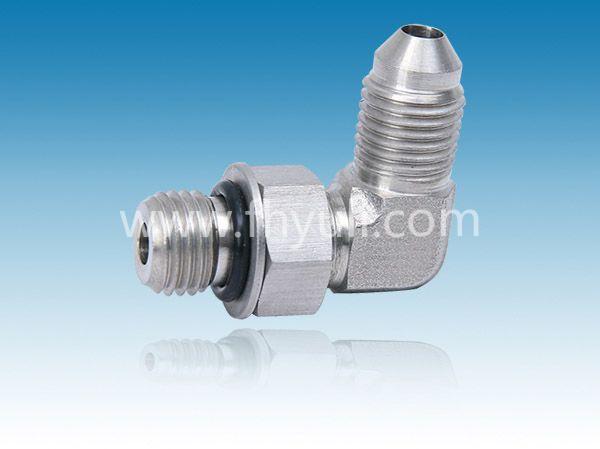

【產品名稱】 不銹鋼過渡接頭 直角SS6801系列
【所屬分類】 不銹鋼過渡接頭 【產品型號】 SS6801 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | SS6801 |
| 材質： | 不銹鋼 |
| 規格： | 90度彎頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | TUBE O.D. | B1 SAE 37 | B2 SAE ORB | B1 DRILL | B2 DRILL | M LGTH | M7 LGTH | C HEX | Y FLATS |
| 6801-02-02-NOW | 1/8 | 5/16-24 | 5/16-24 | 0.062 | 0.062 | 0.77 | 0.94 | 0.438 | 0.438 |
| 6801-02-04-NOW | 1/8 | 5/16-24 | 7/16-20 | 0.062 | 0.172 | 0.78 | 1.03 | 0.563 | 0.438 |
| 6801-03-03-NOW | 3/16 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 0.83 | 0.94 | 0.500 | 0.438 |
| 6801-03-04-NOW | 3/16 | 3/8-24 | 7/16-20 | 0.125 | 0.172 | 0.81 | 1.03 | 0.563 | 0.438 |
| 6801-04-02-NOW | 1/4 | 7/16-20 | 5/16-24 | 0.172 | 0.062 | 0.89 | 0.92 | 0.438 | 0.438 |
| 6801-04-03-NOW | 1/4 | 7/16-20 | 3/8-24 | 0.172 | 0.125 | 0.89 | 0.92 | 0.500 | 0.438 |
| 6801-04-04-NOW | 1/4 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.89 | 1.03 | 0.563 | 0.438 |
| 6801-04-05-NOW | 1/4 | 7/16-20 | 1/2-20 | 0.172 | 0.234 | 0.95 | 1.13 | 0.625 | 0.562 |
| 6801-04-06-NOW | 1/4 | 7/16-20 | 9/16-18 | 0.172 | 0.279 | 1.05 | 1.25 | 0.688 | 0.562 |
| 6801-04-08-NOW | 1/4 | 7/16-20 | 3/4-16 | 0.172 | 0.391 | 1.12 | 1.45 | 0.875 | 0.75 |
| 6801-05-04-NOW | 5/16 | 1/2-20 | 7/16-20 | 0.234 | 0.172 | 0.95 | 1.13 | 0.563 | 0.562 |
| 6801-05-05-NOW | 5/16 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.95 | 1.13 | 0.625 | 0.562 |
| 6801-05-06-NOW | 5/16 | 1/2-20 | 9/16-18 | 0.234 | 0.297 | 1.05 | 1.25 | 0.688 | 0.562 |
| 6801-05-08-NOW | 5/16 | 1/2-20 | 3/4-16 | 0.234 | 0.391 | 1.12 | 1.45 | 0.875 | 0.750 |
| 6801-05-10-NOW | 5/16 | 1/2-20 | 7/8-14 | 0.234 | 0.484 | 1.210 | 1.700 | 1.000 | 0.875 |
| 6801-06-02-NOW | 3/8 | 9/16-18 | 5/16-24 | 0.297 | 0.062 | 1.060 | 1.080 | 0.438 | 0.562 |
| 6801-06-04-NOW | 3/8 | 9/16-18 | 7/16-20 | 0.297 | 0.172 | 1.060 | 1.190 | 0.563 | 0.562 |
| 6801-06-05-NOW | 3/8 | 9/16-18 | 1/2-20 | 0.297 | 0.234 | 1.060 | 1.190 | 0.625 | 0.562 |
| 6801-06-06-NOW | 3/8 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 1.060 | 1.250 | 0.688 | 0.562 |
| 6801-06-08-NOW | 3/8 | 9/16-18 | 3/4-16 | 0.297 | 0.391 | 1.140 | 1.450 | 0.875 | 0.750 |
| 6801-06-10-NOW | 3/8 | 9/16-18 | 7/8-14 | 0.297 | 0.484 | 1.220 | 1.700 | 1.000 | 0.875 |
| 6801-06-12-NOW | 3/8 | 9/16-18 | 1-1/16-12 | 0.297 | 0.609 | 1.310 | 1.940 | 1.250 | 1.062 |
| 6801-08-04-NOW | 1/2 | 3/4-16 | 7/16-20 | 0.391 | 0.172 | 1.25 | 1.26 | 0.563 | 0.750 |
| 6801-08-05-NOW | 1/2 | 3/4-16 | 1/2-20 | 0.391 | 0.234 | 1.250 | 1.260 | 0.625 | 0.750 |
| 6801-08-06-NOW | 1/2 | 3/4-16 | 9/16-18 | 0.391 | 0.297 | 1.250 | 1.320 | 0.688 | 0.750 |
| 6801-08-08-NOW | 1/2 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 1.250 | 1.450 | 0.875 | 0.750 |
| 6801-08-10-NOW | 1/2 | 3/4-16 | 7/8-14 | 0.391 | 0.484 | 1.330 | 1.700 | 1.000 | 0.875 |
| 6801-08-12-NOW | 1/2 | 3/4-16 | 1-1/16-12 | 0.391 | 0.609 | 1.420 | 1.940 | 1.250 | 1.062 |
| 6801-08-16-NOW | 1/2 | 3/4-16 | 1-5/16-12 | 0.391 | 0.844 | 1.520 | 2.050 | 1.500 | 1.312 |
| 6801-10-06-NOW | 5/8 | 7/8-14 | 9/16-18 | 0.484 | 0.297 | 1.450 | 1.410 | 0.688 | 0.875 |
| 6801-10-08-NOW | 5/8 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 1.450 | 1.540 | 0.875 | 0.875 |
| 6801-10-10-NOW | 5/8 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 1.450 | 1.700 | 1.000 | 0.875 |
| 6801-10-12-NOW | 5/8 | 7/8-14 | 1-1/16-12 | 0.484 | 0.609 | 1.540 | 1.940 | 1.250 | 1.062 |
| 6801-10-14-NOW | 5/8 | 7/8-14 | 1-3/16-12 | 0.484 | 0.719 | 1.650 | 2.000 | 1.375 | 1.312 |
| 6801-10-16-NOW | 5/8 | 7/8-14 | 1-5/16-12 | 0.484 | 0.844 | 1.640 | 2.050 | 1.500 | 1.312 |
| 6801-10-20-NOW | 5/8 | 7/8-14 | 1-5/8-12 | 0.484 | 1.078 | 1.840 | 2.250 | 1.875 | 1.625 |
| 6801-12-06-NOW | 3/4 | 1-1/16-12 | 9/16-18 | 0.609 | 0.297 | 1.660 | 1.490 | 0.688 | 1.062 |
| 6801-12-08-NOW | 3/4 | 1-1/16-12 | 3/4-16 | 0.609 | 0.391 | 1.660 | 1.620 | 0.875 | 1.062 |
| 6801-12-10-NOW | 3/4 | 1-1/16-12 | 7/8-14 | 0.609 | 0.484 | 1.660 | 1.780 | 1.000 | 1.062 |
| 6801-12-12-NOW | 3/4 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.660 | 1.940 | 1.250 | 1.062 |
| 6801-12-14-NOW | 3/4 | 1-1/16-12 | 1-3/16-12 | 0.609 | 0.719 | 1.770 | 2.000 | 1.375 | 1.312 |
| 6801-12-16-NOW | 3/4 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.844 | 1.760 | 2.050 | 1.500 | 1.312 |
| 6801-12-20-NOW | 3/4 | 1-1/16-12 | 1-5/8-12 | 0.609 | 1.078 | 1.970 | 2.250 | 1.875 | 1.625 |
| 6801-14-12-NOW | 7/8 | 1-3/16-12 | 1-1/16-12 | 0.719 | 0.609 | 1.800 | 2.000 | 1.250 | 1.312 |
| 6801-14-14-NOW | 7/8 | 1-3/16-12 | 1-3/16-12 | 0.719 | 0.719 | 1.800 | 2.000 | 1.375 | 1.312 |
| 6801-14-16-NOW | 7/8 | 1-3/16-12 | 1-5/16-12 | 0.719 | 0.844 | 1.790 | 2.050 | 1.500 | 1.312 |
| 6801-16-08-NOW | 1 | 1-5/16-12 | 3/4-16 | 0.844 | 0.391 | 1.810 | 1.730 | 0.875 | 1.312 |
| 6801-16-10-NOW | 1 | 1-5/16-12 | 7/8-14 | 0.844 | 0.484 | 1.810 | 1.890 | 1.000 | 1.312 |
| 6801-16-12-NOW | 1 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.609 | 1.810 | 2.050 | 1.250 | 1.312 |
| 6801-16-14-NOW | 1 | 1-5/16-12 | 1-3/16-12 | 0.844 | 0.719 | 1.810 | 2.050 | 1.375 | 1.312 |
| 6801-16-16-NOW | 1 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 1.810 | 2.050 | 1.500 | 1.312 |
| 6801-16-20-NOW | 1 | 1-5/16-12 | 1-5/8-12 | 0.844 | 1.078 | 2.010 | 2.250 | 1.875 | 1.625 |
| 6801-16-24-NOW | 1 | 1-5/16-12 | 1-7/8-12 | 0.844 | 1.312 | 2.16 | 2.39 | 2.125 | 1.875 |
| 6801-20-12-NOW | 1-1/4 | 1-5/8-12 | 1-1/16-12 | 1.078 | 0.609 | 2.06 | 2.25 | 1.25 | 1.625 |
| 6801-20-14-NOW | 1-1/4 | 1-5/8-12 | 1-3/16-12 | 1.078 | 0.719 | 2.06 | 2.25 | 1.375 | 1.625 |
| 6801-20-16-NOW | 1-1/4 | 1-5/8-12 | 1-5/16-12 | 1.078 | 0.844 | 2.06 | 2.25 | 1.5 | 1.625 |
| 6801-20-20-NOW | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 2.06 | 2.25 | 1.875 | 1.625 |
| 6801-20-24-NOW | 1-1/4 | 1-5/8-12 | 1-7/8-12 | 1.078 | 1.312 | 2.2 | 2.39 | 2.125 | 1.875 |
| 6801-24-16-NOW | 1-1/2 | 1-7/8-12 | 1-5/16-12 | 1.312 | 0.844 | 2.33 | 2.39 | 1.5 | 1.875 |
| 6801-24-20-NOW | 1-1/2 | 1-7/8-12 | 1-5/8-12 | 1.312 | 1.078 | 2.33 | 2.39 | 1.875 | 1.875 |
| 6801-24-24-NOW | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 2.33 | 2.39 | 2.125 | 1.875 |
| 6801-24-32-NOW | 2 | 1-7/8-12 | 2-1/2-12 | 1.312 | 1.781 | 2.81 | 2.89 | 2.75 | 2.5 |
| 6801-32-24-NOW | 2 | 2-1/2-12 | 1-7/8-12 | 1.781 | 1.312 | 3.06 | 2.89 | 2.125 | 2.5 |
| 6801-32-32-NOW | 2 | 2-1/2-12 | 2-1/2-12 | 1.781 | 1.781 | 3.06 | 2.89 | 2.75 | 2.5 |
